1. Kondisi [Kembali]

Kondisi awal LED mati lalu hidup bergantian 4 LED dari kiri secara berulang

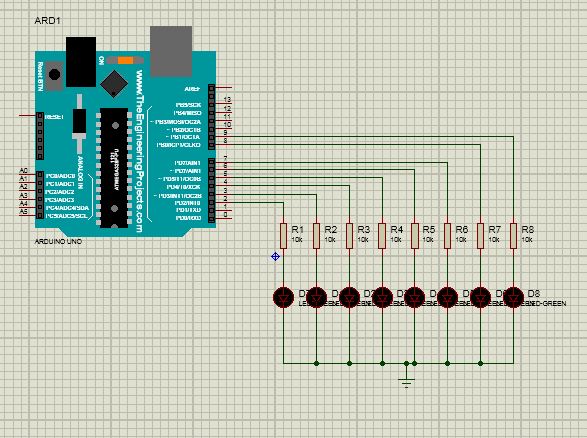

2. Gambar Rangkaian Simulasi [Kembali]

Prinsip Kerja Rangkaian

Pada Rangkaian ini Terdapat sebuah ardouino yang di hubungkan dengan 8 buah resitor berhambatan 280k dan 8 buah lampu led, dimana sesuai dengan kondisinya yaitu led hidup secara bergantian 3 buah dari kiri kekanan. Hidup nya led karena sebelumnya dimasukan sebuah perintah kedalam ardouino dalam bentuk listing program yang nantinya akan dijalankan, dimana di dalam listing programnya dimasukan logika high yang berarti lampu led akan menyala dan logika low yang berarti lampu led akan mati.

3. Flowchart [Kembali]

4. Listing Program [Kembali]

void setup()

{

pinMode(2, OUTPUT);

pinMode(3, OUTPUT);

pinMode(4, OUTPUT);

pinMode(5, OUTPUT);

pinMode(6, OUTPUT);

pinMode(7, OUTPUT);

pinMode(8, OUTPUT);

pinMode(9, OUTPUT);

}

void loop()

{

//menyala secara bergilir kekiri

digitalWrite(2, LOW);

digitalWrite(3, LOW);

digitalWrite(4, LOW);

digitalWrite(5, LOW);

digitalWrite(6, LOW);

digitalWrite(7, LOW);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, HIGH);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, LOW);

digitalWrite(6, LOW);

digitalWrite(7, LOW);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, LOW);

digitalWrite(3, HIGH);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, LOW);

digitalWrite(7, LOW);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, LOW);

digitalWrite(3, LOW);

digitalWrite(4, HIGH);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, LOW);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, LOW);

digitalWrite(3, LOW);

digitalWrite(4, LOW);

digitalWrite(5, HIGH);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, LOW);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, LOW);

digitalWrite(3, LOW);

digitalWrite(4, LOW);

digitalWrite(5, LOW);

digitalWrite(6, HIGH);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, LOW);

delay(100);

digitalWrite(2, LOW);

digitalWrite(3, LOW);

digitalWrite(4, LOW);

digitalWrite(5, LOW);

digitalWrite(6, LOW);

digitalWrite(7, HIGH);

digitalWrite(8, HIGH);

digitalWrite(9, HIGH);

delay(100);

}
